1.PRODUCT INTRORUCTION

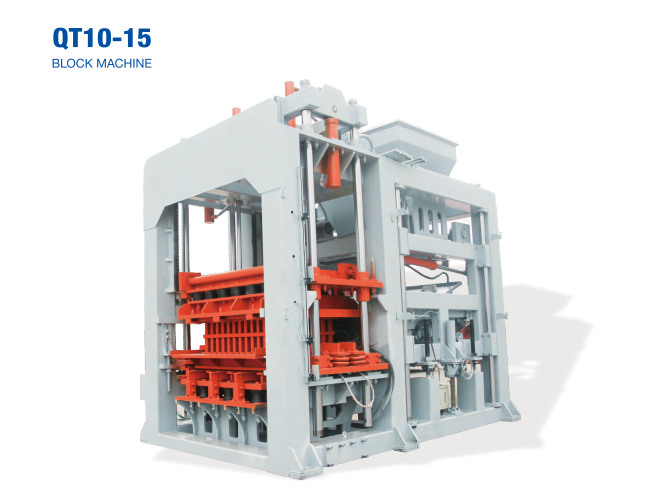

QT10-15 Block making machine is our core competence block machine model, it is full automatic can make all types of hollow blocks, solid blocks, pavers, curbstones and so on. It adopts ouf latest hydraulic pressure technology and advanced vibration system, can ensure the block quality very strong. We cooperated with SIEMENS, OMRON, JAPAN YUKEN, TAWAN PRORISTION and so on to make sure our block machine with high quality and keep our machine work more stable. I am sure you will satisfied with this machine, if you want to know more details, let’s continue to look down.
2.TECHNICAL PARAMETER
| Overall size | 3500x2300x2930mm | Host machine power | 41.25KW |
| Molding period | 12-25S | Vibration Frequency | 3000-5200time/min |
| Pallet Size | 1100×900×25mm | Pallet quantity | 1500pcs |
| Vibration Force | 90KN | Vibration type | Table vibration |
| Voltage | As per local condition | ||
3.PRODUCTION OUTPUT
|
Size(mm) |
Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr | Pictures |
| 400x100x200 | 20 | 3600-4800 | 28800-38400 |  |
| 400x150x200 | 14 | 2700-3150 | 21600-25200 | |
| 400x200x200 | 10 | 1800-2100 | 14400-16800 | |
| 230x110x70 | 50 | 7800-12500 | 62400-100000 |  |
|
225×112.5×60 |
24 | 4050-4500 | 32400-36800 |  |
| 200×100×60
|
27 | 5250 | 42000 |  |
| 200x160x60 | 18 | 3240 | 25920 |
|
| 1.We can design mould as per client requests
2.Capacity above is indicative only,The actual capacity varies with operator efficiency and material quality etc |
||||
