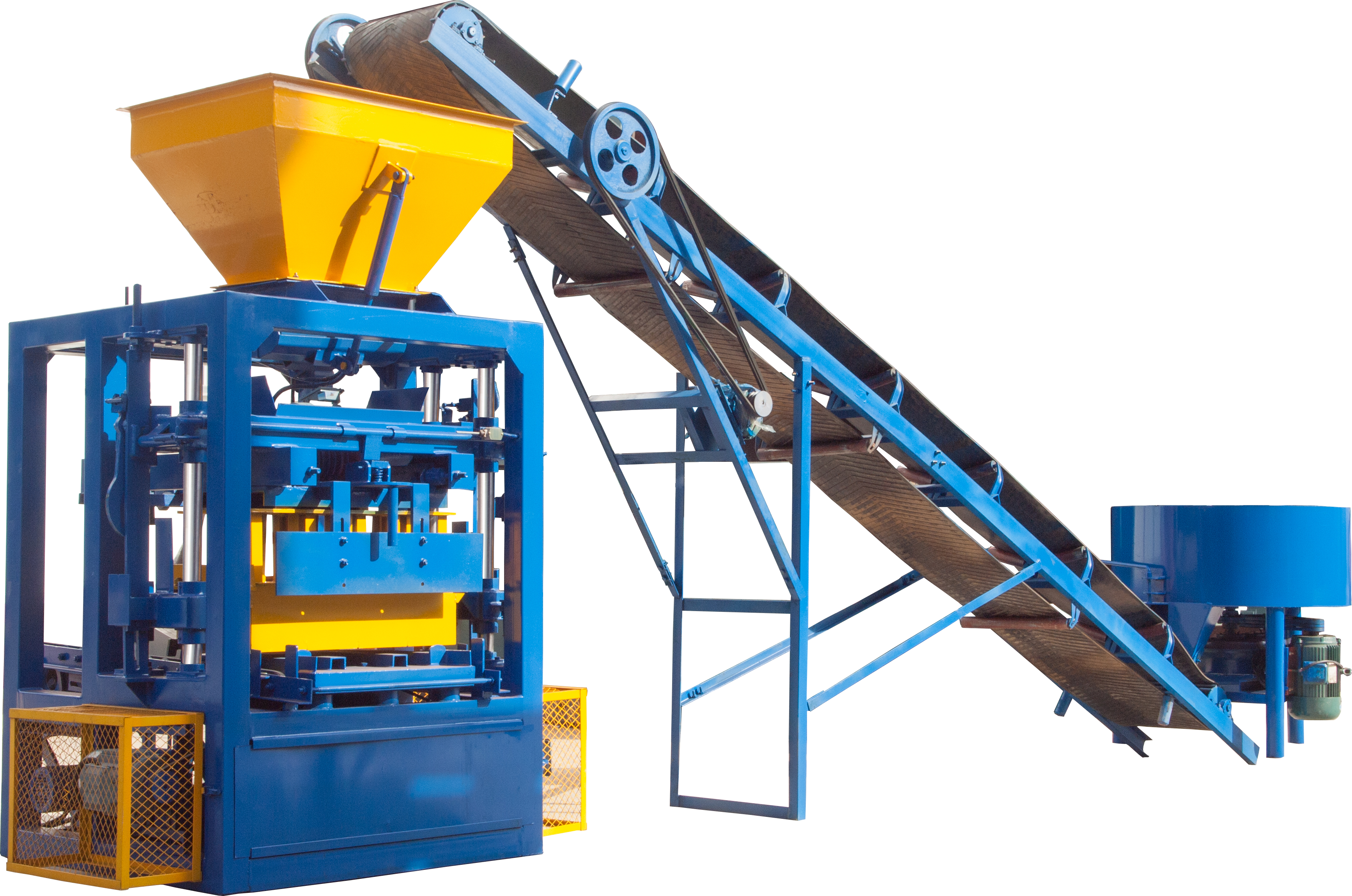

1.QT4-24 semi auto block making machine each part details
| No | ITEM | Function | Motor | Technical details |
| 1 | JD350 mixer | Used to mixer various raw materails like sand,fly ash cement,stone dust,aggregate. | 5.5KW | Diameter”1.2M |
| 2 | Belt Conveyor | Used to transport mixed material into block machine hopper | 1.1KW | Length:6000mm Width:400mm |
| 3 | QT4-24 block machine | Adopting electrical vibration to make various block brick by changing moulds | 13.45KW | No need installation ,can operate after connecting power |
| 4 | Control box | Operator can click buttons on panel to operate the machine | ||
| 5 | Block Trolley | Used to transport the blocks to stroage area | 0KW |
2.QT4-24 semi auto block making machine advantages
1.Multi functional
QT4-24 can change moulds to make various hollow block,solid block and interlocking paver brick
2.Low investment
The total investment is low for QT4-24 semi auto block machine,the captical of turnover is quick,you can get profit in short time
3.Easy operation and maintence
Q4-24 is shipped as whole,no need complicated installation,you can use the machine easily.The machine is simple in structure,can maintain easily.
3.Seaworthy Packing,Low ocean freight
Q4-24 can be packed by plywood box when shipping.It can grealty reduce the shipping cost
3.QT4-24 block making machine technical parameter
| Overall size | 2060×1730×1850mm | Host machine power | 13.45KW |
| Molding period | 30S | Vibration force | 35.5KN |
| Pallet Size | 850×550×30mm | Pallet quantity | 600pcs |
| Weight | 3T | Mixer model | JD350 |
| Voltage | According to local condition | ||
4.QT4-24 Production Capacity
| QT4-24 Production capacity | |||
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 400X100X200 | 7 | 630-840 | 5040-6720 |
| 400X150X200 | 5 | 450-600 | 3600-4800 |
| 400X200X200 | 4 | 360-450 | 2880-3600 |
| 400X250X200 | 3 | 270-360 | 2160-2880 |
| 240x115x53 | 24 | 2160 | 17280 |
| 225X112.5X60 | 12 | 959 | 7679 |
| we can design molds according to your requests | |||
