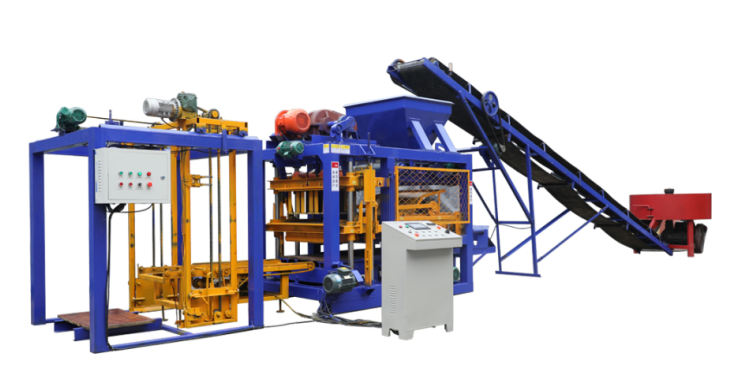

1.PRODUCT INTRODUCTION
QT4-25 cement brick making machine is a kind of automatic product developed by our company newly, adopts flat vibration, mold vibration, and squeeze compression vibration, manufactures the blocks with average density and high strength. And the unique dose charging device and the strong material-distributing structure ensure the block’s quality of various materials. It adopts PLC control, and realizes the automatic plate-supplying, material-distributing, and brick-discharging. With the high efficiency, it is the ideal equipment to manufacture the new style wall material.
2.TECHNICAL PARAMTERE
| Technical parameter | |
| Machine oversize | 6400x1500x2700mm |
| Power | 18.7KW |
| Vibration force | 70-90KN |
| Molding cylce | 25S |
| Vibration frequency | 2800-4500times/min |
| Pallet size | 850x550mm |
3.PRODUCTION CAPACITY
| Production capacity | |||||
| Block picture | Block size(mm) | Pcs/mould | Pcs/hr | Pcs/8hrs | |
 |

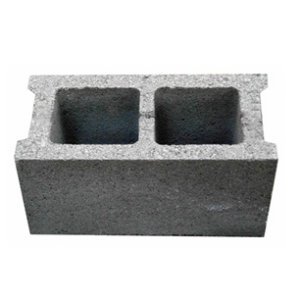

400x200x200 | 4 | 576 | 4608 | |
 |

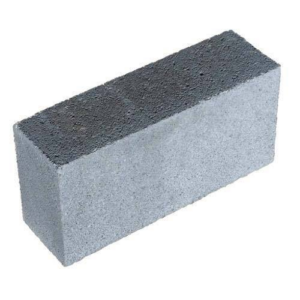

230x110x70 | 20 | 2880 | 23040 | |
