Product Description

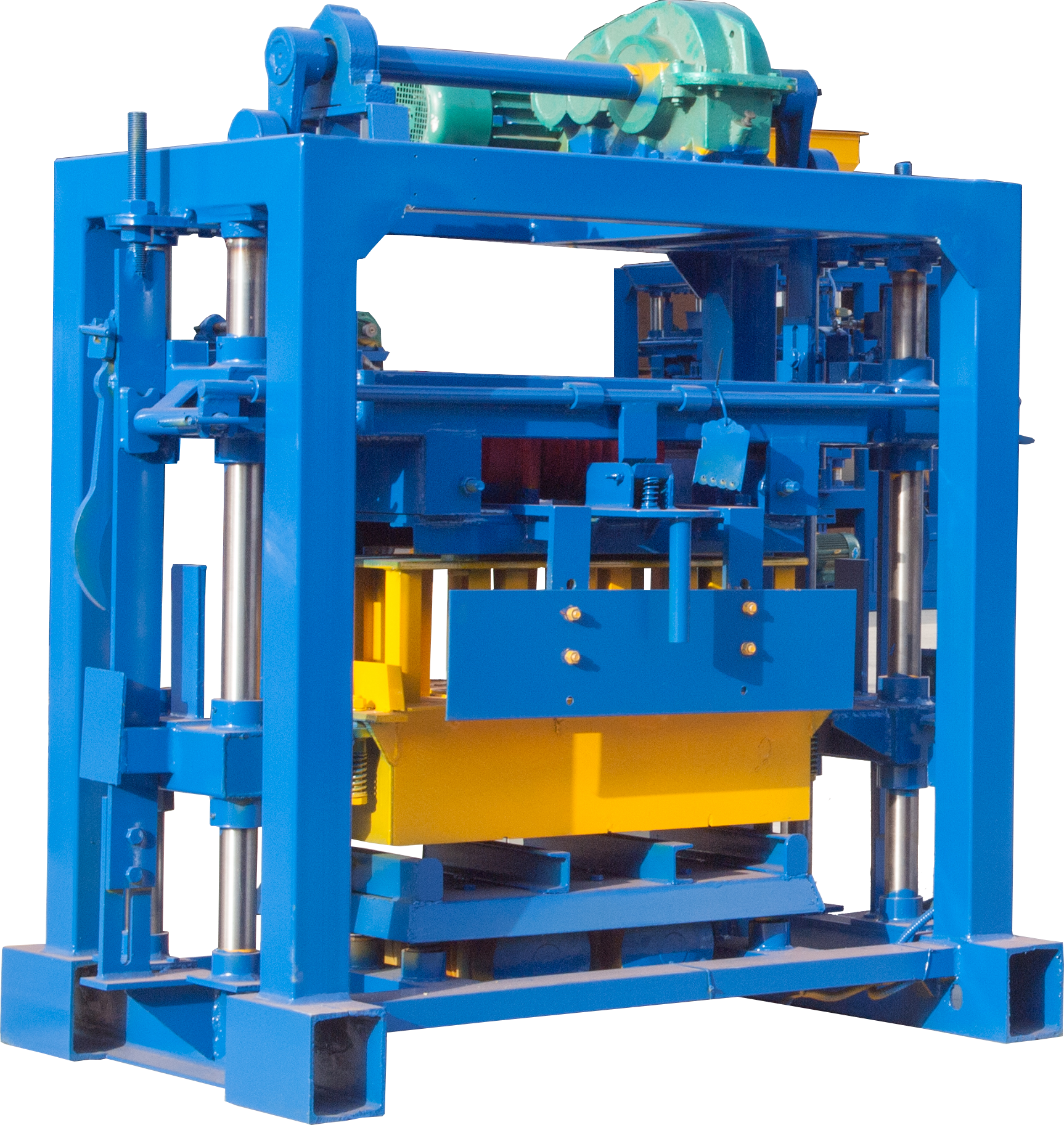

1.QT40-2 Manual concrete block machine brief introduction

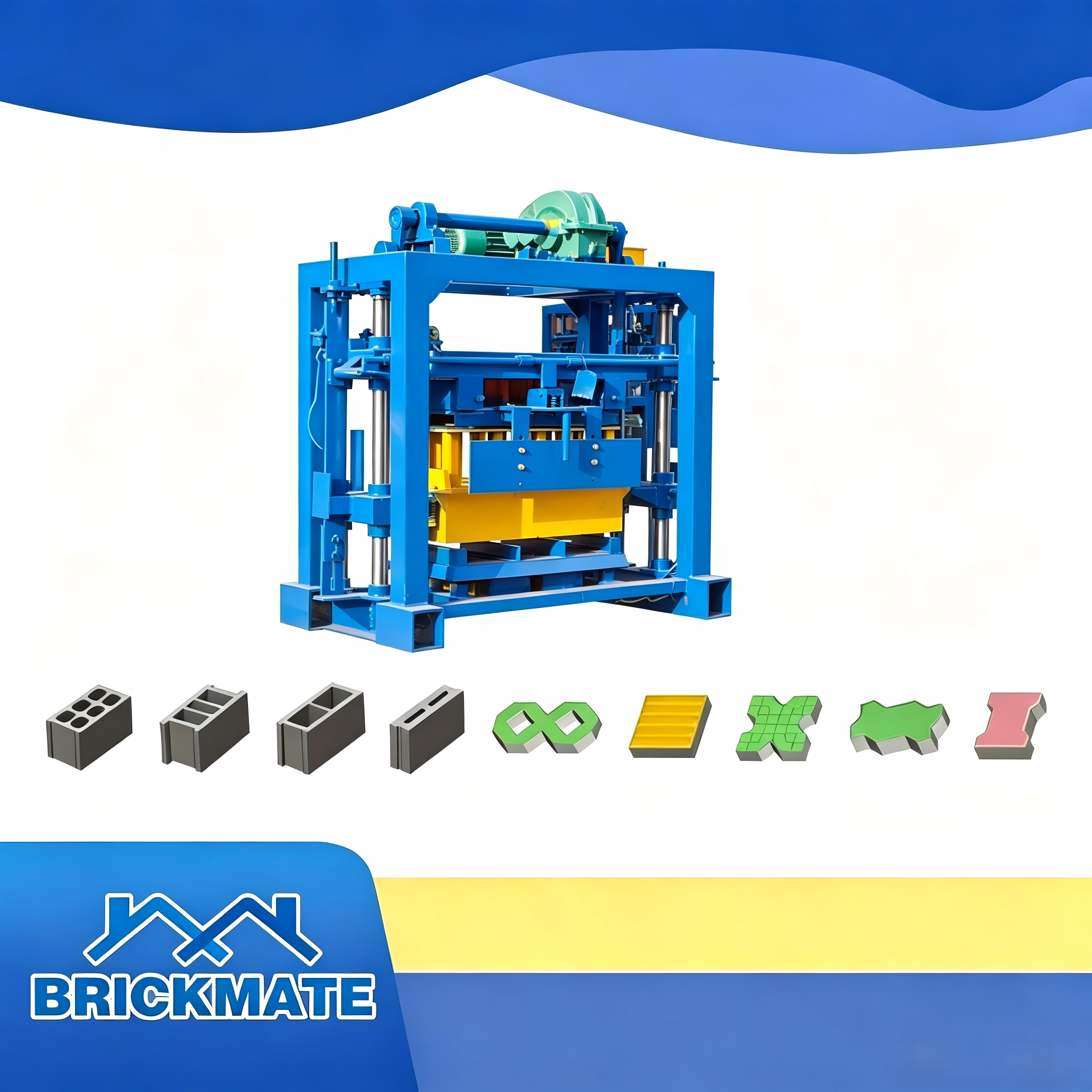

1)QT40-2 block machine can make various hollow block,solid brick and paver bricks
2)The machine operation is easy,no need engineer to install at local.You can start production after connecting with power
3)Low cost:QT40-2 block machine,JD350 mixer and two trolley total cost is 3500USD
4)QT40-2 labro requests are 3 labors,One labor feeds material into mixer,1 labor operates block machine,1 labor transport finished block to stock area
2.QT40-2 Concrete block Making Machine Each part introduction
| No | Item | Function | Qty | Power |
| 1 | JD350 pan mixer | Used to mix various material like cement,sand,stone dust. | 1set | 7.5KW |
| 2 | QT40-2 block machine | Used to press material into various hollow block,solid brick,paver brick.The block mould and motor voltage are OEM | 1set | 8.8KW |
| 3 | Block trolley | Use to transport finished block into | 1set | 0KW |
| 4 | Pallet | Pallet is used to hold blocks.The material can be pvc,wood,GTM and bamboo. | 600pcs | 0kw |
3.QT40-2 Manual cement block machine technical parameter
| Overall size | 1350x1460x1500mm | Host machine power | 8.8KW |
| Production cycle | 40S | Vibration force | 30KN |
| Pallet size | 850×450×20mm | Mixer model | JD350 |
| Machine weight | 1.8T | Voltage | According to local condition |
4.QT40-2 Hand press block making machine production capacity
| Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
| 400X150X200 | 5 | 360-450 | 2880-3600 |
| 400X200X200 | 4 | 280-360 | 2240-2800 |
| 400X100X200 | 7 | 504-630 | 4032-5040 |
| 400X250X200 | 3 | 216-270 | 1728-2160 |
| 240X115X52 | 18 | 1296-1620 | 10368-12960 |
* Capacity Mentioned is indicative only,actual capacity varies with operator efficiency and
material quality etc.
Our service
♦Pre-sales
1 Perfect 7*24hours inquiry and professinal consulting service
2.Visit our factory anytime
♦Sale
1. Update the production shedule in time
2. Quality supervision
3. Product acceptance
4. Shipping on time
♦After-sales
1. Guarantee:1 year ,during this period we will offer free spare parts if they are broken.
2. Training how to install and use machine
3. Engineers available to service overseas
4. Skill support the whole using life
